Overview



High definition, low latency, long-distance transmission, and long-distance transmission. Battery in the box supports 110 minutes of flight when fully charged.



Specification:

Brand: DJI

Model: FPV Goggles V2

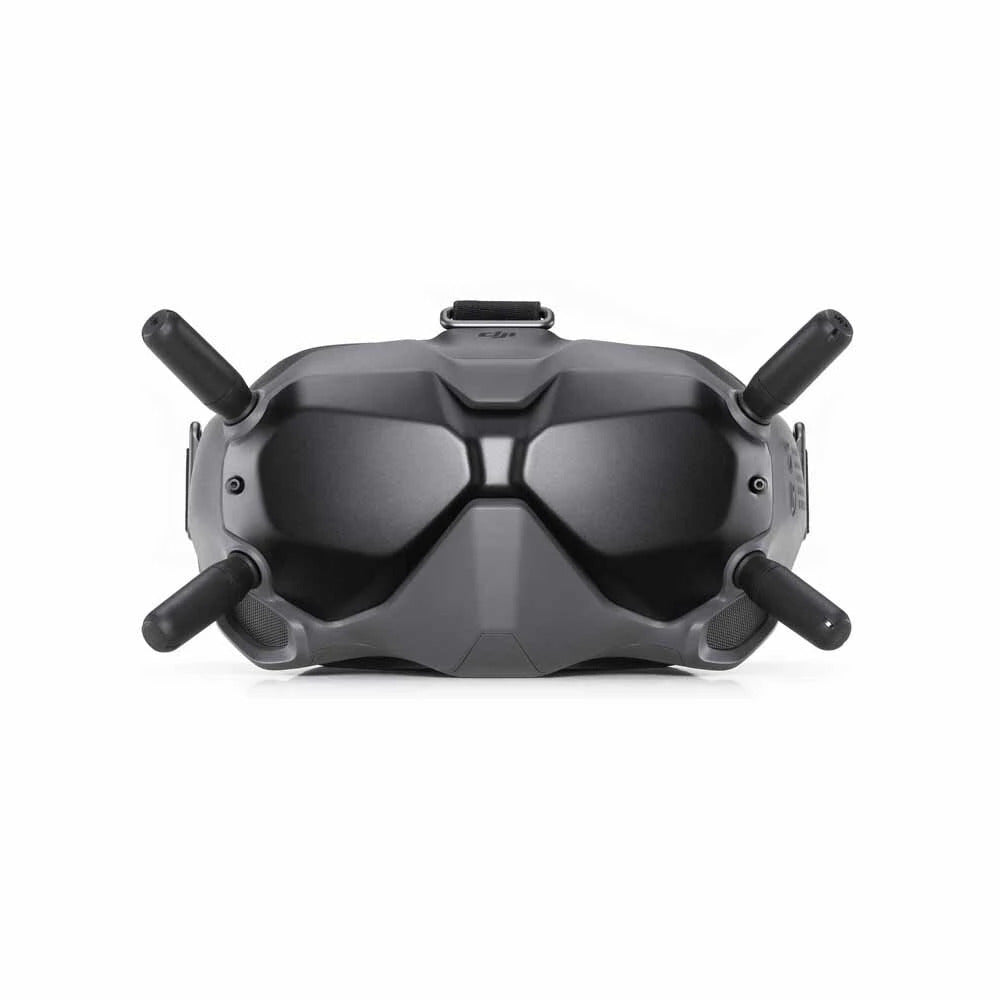

DJI FPV Goggles V2

Weight: Approx. 420 g (headband and antennas included)

Dimensions: 202×126×110 mm (antennas included), 184×122×110 mm (antennas excluded)

Screen Size: 2-inch × 2

Screen Resolution (Single Screen): 1440 × 810

Screen Renew Rate: 144 Hz

Communication Frequency: 2.400 - 2.4835 GHz*; 5.725-5.850 GHz

*Only supports 5.8Ghz when used with DJI FPV Air Unit

Transmitter Power (EIRP): 2.400 - 2.4835 GHz

FCC/MIC: ≤28.5 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm

5.725-5.850 GHz

FCC/MIC: ≤31.5 dBm; CE: ≤14 dBm; SRRC: ≤19 dBm

Live View Mode: Low-Latency Mode (810p 120fps); High-Quality Mode (810p 60fps)

Video Format: MP4 (Video format: H.264)

Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)

Operating Temperature: 32° to 104° F (0° to 40° C)

FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%

Interpupillar Distance Range: 58 -70 mm

Supported Storage Card: microSD cards with storage capacities of up to 256GB.



DJI FPV Goggles Battery

Capacity: 1800 mAh

Voltage: 9 V (Max.)

Type: LiPo 2S

Charging Temperature: 0℃ to 45℃

Energy: 18 Wh

Max Charging Power: 10 W

Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)



Tips:

Avoid exposing the inside of the goggles to direct sunlight.



Compatibility:

DJI FPV Air Unit

DJI FPV Remote Controller



Package Included:

1x DJI FPV Goggles V2 (inc. foam padding)

1x DJI FPV Goggles Battery

1x DJI FPV Goggles Power Cable (USB-C)

4x DJI FPV Goggles Antenna (Dual Band)

1x Headband

1x USB-C cable

1x Sleeve
