Overview
The hand unit features a built-in RF module and supports wireless communication with the DJI Focus Pro Motor from up to 160 meters away. It supports FIZ control over the focus, aperture, and zoom, and features real-time, stepless damping adjustment to balance comfort and precision.
Tips
The hand unit utilizes the NP-F550 battery model commonly available on the market. The dimensions should be 71×38.6×21.1 mm (L×W×H). Make sure to purchase batteries according to these specified dimensions.

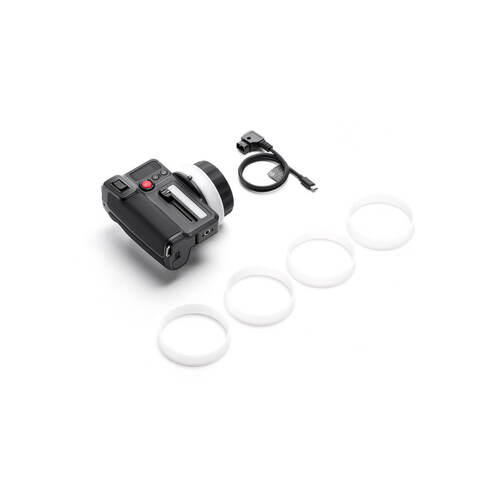

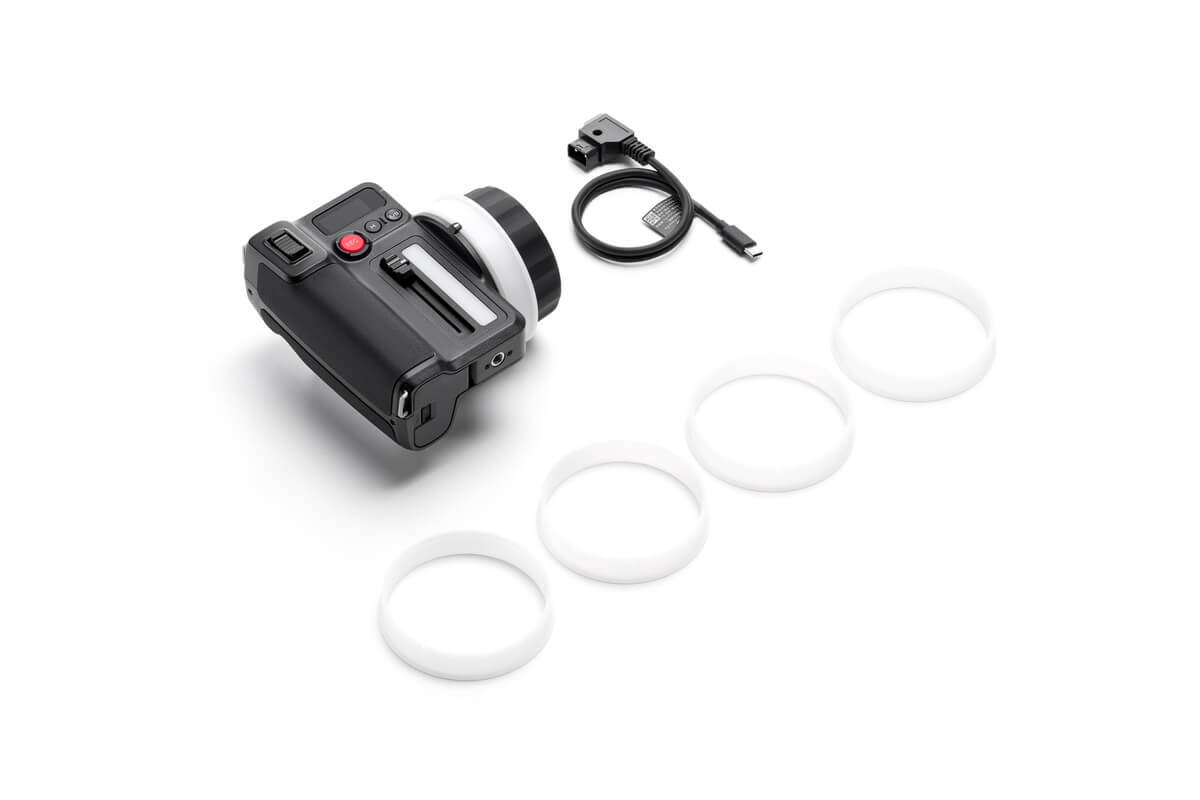

In The Box
- Focus Pro Hand Unit × 1
- D-TAP to USB-C Power Cable (50 cm) × 1
- Replaceable Focus Marking Ring × 4
Specifications
Transmitter Power: < 20 dBm (CE/SRRC/MIC), < 26 dBm (FCC)
Dimensions: 128×87×87 mm (L×W×H)
Weight: 555 g (without battery)
Static Power Consumption: 0.83 W
Operating Temperature: -20° to 45° C (-4° to 113° F) (excluding battery temperature)
Compatibility
* Requires the DJI High-Bright Remote Monitor
