Overview

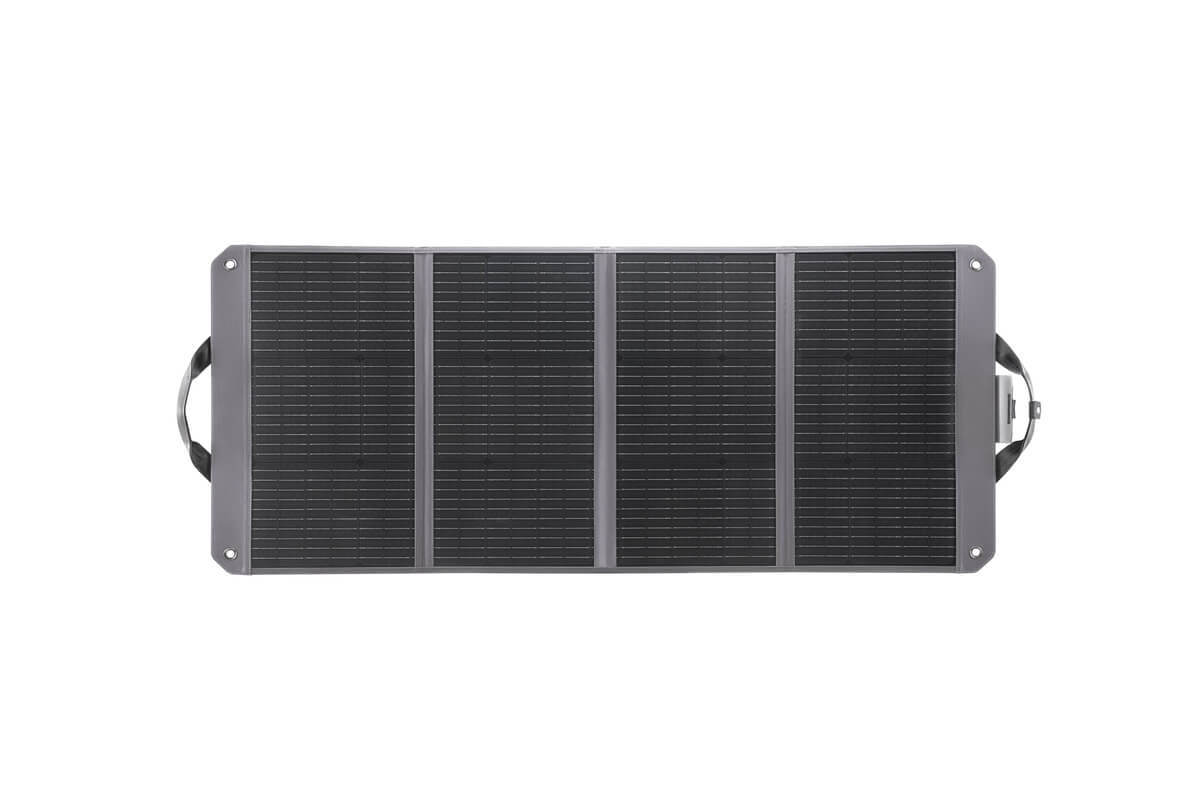

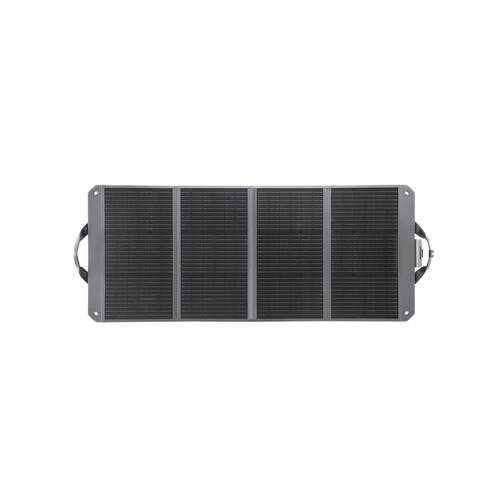

The Zignes solar panel leverages solar energy to eco-recharge the DJI Power-series power stations, with a single panel reaching a max charging output of 120 W.
Featuring a foldable design, it is convenient to store and transport, and comes with a stand for easy setup without the need for additional supports.
It includes a 3m extension cable, allowing users to freely position it in well-lit areas for flexible placement.
Designed with an IP65 rating for dust and water resistance, it accommodates a variety of everyday use scenarios.
Tips
Zignes 120W Solar Panel requires the use of a DJI Power Solar Panel Adapter Module (MPPT) or a DJI Power Car Power Outlet to SDC Power Cable (12V/24V)
for connection to the DJI Power-series power stations. Purchase the accessories as needed.
Each DJI Power Solar Panel Adapter Module (MPPT) can then connect to one to three solar panels, while the DJI Power Car Power Outlet to SDC Power Cable (12V/24V) can connect to one solar panel at most.
In The Box
Zignes 120W Solar Panel × 1
Specifications
Rated Power: 120 W
Open-circuit Voltage: Max 26 V
Short-circuit Current: Max 7 A
Weight: Approx. 5.6 kg
Unfolded Dimensions: 1365×580×36 mm (L×W×H)
Folded Dimensions: 365×580×70 mm (L×W×H)
Operating Temperature: -20° to 60° C (-4° to 140° F)
Compatibility
- DJI Power Solar Panel Adapter Module (MPPT)
- DJI Power Car Power Outlet to SDC Power Cable (12V/24V)
