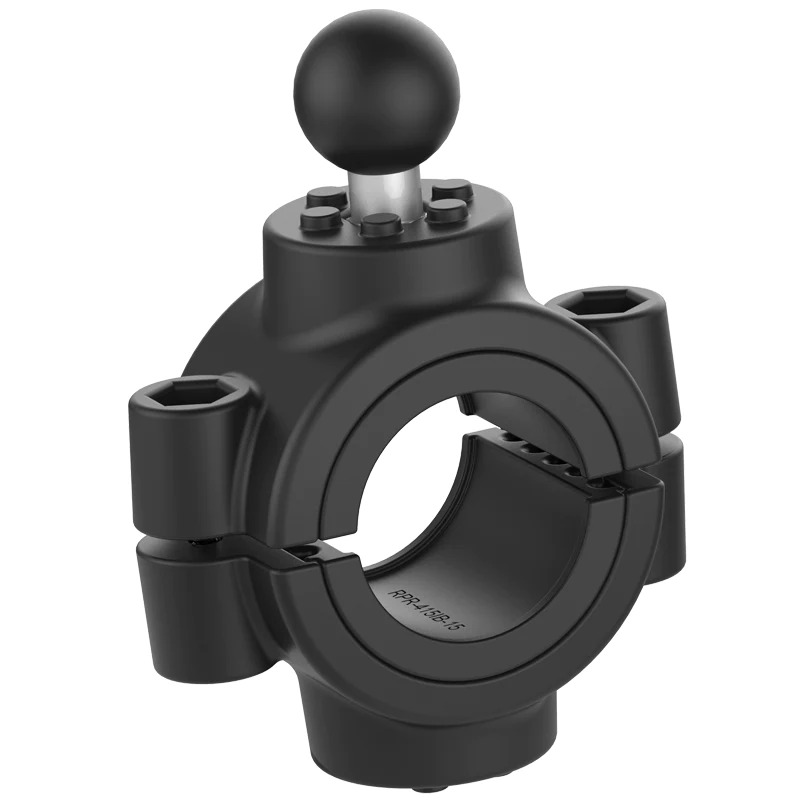

The RAM Torque^™ Rail Base accommodates rails and bars ranging from 1.5” to 2” in diameter – the perfect mounting solution for your ATV or UTV. The include B size hex ball adapter can connect to either side of the Torque base, and is suitable for rugged environments for supporting action cameras, spotlights or other devices. Two sizing inserts – one for attachment to 1.5” rails and the other for attachment to 1.75” rails – are included to create a tight hold while nylon-insert lock nuts prevent loosening in high-vibration environments. Available separately, the RAM B Size Ball Add-On allows you to attach an additional B Size Ball to the Torque^™ Rail Base for mounting multiple devices.

HARDWARE INCLUDED

Assembly Hardware
(2) #10-24 x 1" Socket Head Cap Screws
(2) #10-24 Nylock Nuts
(1) 5/32" Hex Key Wrench
(2) 1.5" Split Reducing Bushings
(2) 1.75" Split Reducing Bushings
(1) 172mm x 38.5mm Rubber Adhesive Strip

CLAMP RANGE

1.5" - 2" diameter

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.78 lb
