FEATURES

• Complete flat surface, drill-down mounting solution with short length D size socket arm compatible with 9"-12" fishfinder gimbal brackets
• RAM® Mounts ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty



OVERVIEW

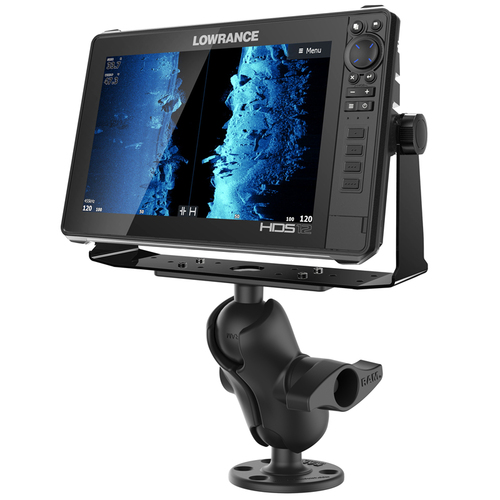

The RAM-D-115-C consists of a base with a 2.25” diameter D size ball, a short arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.



PRODUCT DIMENSIONS

Overall Height: 7.325"

SOCKET-TO-SOCKET LENGTH

3.6"

HOLE PATTERN

See Drawings

PLATE SIZE

Top Plate: 6.25" x 2"
Bottom Plate: 3.68" Diameter

BALL/SOCKET SIZE

D Size (2.25")

WEIGHT CAPACITY

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs

MATERIALS

Marine-grade aluminum

WEIGHT

3.2 lbs.

ADDITIONAL INFORMATION

• The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.



COMPATIBLE DEVICES

Garmin

• GPSMAP 8410
• GPSMAP 8410xsv
• GPSMAP 8412
• GPSMAP 8412xsv
• GPSMAP 8416
• GPSMAP 8416xsv
• GPSMAP 8610
• GPSMAP 8610xsv
• GPSMAP 8612
• GPSMAP 8612xsv
• GPSMAP 8616
• GPSMAP 8616xsv
• GPSMAP 922
• GPSMAP 922xs
• GPSMAP 923
• GPSMAP 923xsv
• GPSMAP 942
• GPSMAP 942xs
• GPSMAP 943
• GPSMAP 943xsv
• GPSMAP 1223
• GPSMAP 1223xsv
• GPSMAP 1243
• GPSMAP 1243xsv
• echoMAP Chirp 72-95 Series
• ECHOMAP Plus 72-97 Series
• ECHOMAP UHD 62-95 Series
• ECHOMAP Ultra 102sv
• ECHOMAP Ultra 106sv
• Striker Plus 9sv
• Striker Vivid 9sv
• Fishfinders and GPS Chartplotters

Lowrance

• Elite FS 7
• Elite FS 9
• HDS Carbon 7
• HDS LIVE 9
• HDS LIVE 12
• Hook Reveal 7 Series
• Hook Reveal 9 Series
• HOOK-9
• Fishfinders and GPS Chartplotters

Humminbird

• Fishfinders and GPS Chartplotters

Raymarine

• Fishfinders and GPS Chartplotters
