FEATURES

• Spring-loaded holder secures the Panasonic Toughpad FZ-G1; interchangeable end cups allow you to modify the holder when upgrading devices
• Compatible with B and C size RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

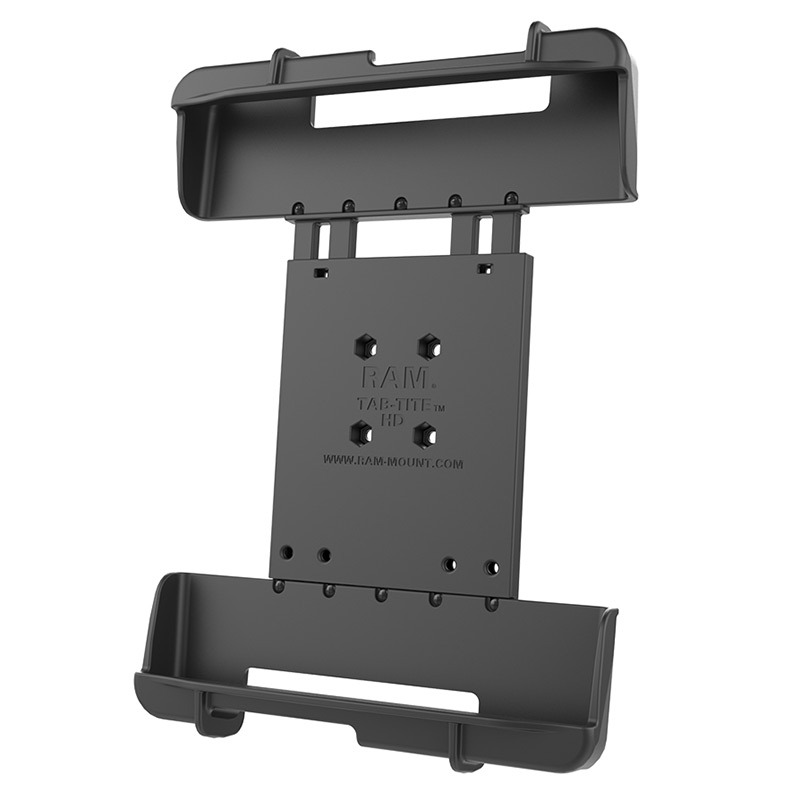

The RAM-HOL-TAB19U consists of a spring loaded back plate and custom support cups for the Panasonic Toughpad FZ-G1. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. Perfect for stationary or on the go applications, the RAM-HOL-TAB19U is just what you need to get the most out of your tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite^™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

HARDWARE INCLUDED

Assembly Hardware

• (4) #8-32 x 5/8" Machine Screws
• (4) #8-32 x 1/2" Machine Screws
• (4) #8-32 Nylock Nuts

HOLDER DIMENSIONS

• Height Range: 10.75" - 13.375"
• Width Range: 6.5" - 7.75"
• Depth Range: .13" - .93"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"

MATERIALS

High strength composite



ADDITIONAL INFORMATION

• If your tablet has a handstrap integrated in the back, a set of risers (RAM-HOL-TAB-RISER1U or RAM-HOL-TAB-RISER2U) may be required to offset the cups to accomodate the added thickness. This holder will not support the Panasonic Toughpad FZ-G1 with an extended battery pack.

COMPATIBLE DEVICES

Amazon

• Fire HD 10 with Case

ASUS

• MeMO Pad FHD 10 with Case
• Transformer Pad with Case

Dell

• Venue 11 Pro with Case
• Venue 11 Pro 7000 with Case

HP

• ElitePad 900 with Case

Lenovo

• Tab A10 with Case
• ThinkPad 10 with Case
• Yoga Tablet 10 with Case
• Yoga Tablet 10 HD+ with Case

Zebra

• L10 XSLATE 10.1
• ET5x 10" with Case
