FEATURES

• Designed for track mounting systems including the RAM® Tough-Track™; includes 1.5" C size rubber ball
• Features a rubber friction washer and a stainless steel T-bolt; simply insert into your track and twist the ball clockwise to tighten
• Made of high-strength composites for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

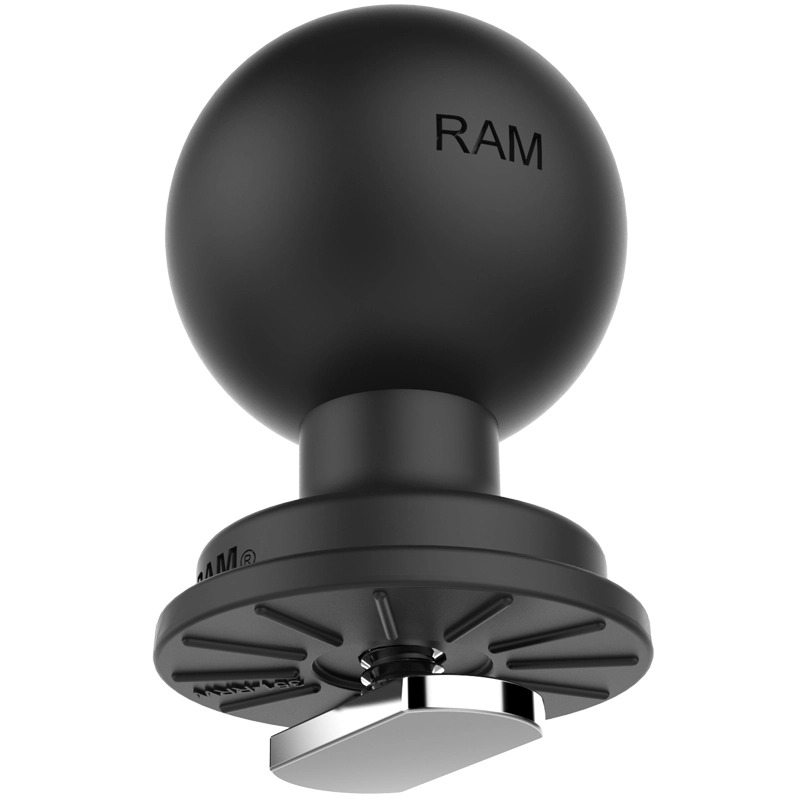

The RAM Track Ball is made up of a C size 1.5" rubber ball molded to a high strength composite base, a rubber friction washer and a stainless steel T-bolt for sliding into virtually any track system. Simply insert or slide the Track Ball into your track and twist the ball clockwise to tighten in place. Twist counterclockwise to loosen or adjust the ball.

 T-Bolt Dimensions: .48" x .95"

HARDWARE INCLUDED

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt

PLATE SIZE

0.48" x 0.95" T-Bolt

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

High strength composite
