Ronin 2 Camera Gimbal Professional Combo  $10,999

The long-awaited DJI Ronin 2 has finally arrived! Its upgraded, high-torque motors provide filmmakers with versatility by supporting a wider range of cameras, improved wind-resistance and G-forces; the Ronin 2 offers improved performance when mounted to vehicles or during flight.

Highlights:

  • Most versatile professional 3-axis stabilization system
  • Monocoque carbon fiber frame design
  • High torque motors supporting cameras up to 30 lbs
  • Fine tune balancing for precision control
  • Self-heating hot-swappable batteries
  • On-board power for camera and accessories
  • Integrated camera controls
  • Built-in GPS & compatible with DJI A3 Flight Controller



The long-awaited DJI Ronin 2 has finally arrived! Its upgraded, high-torque motors provide filmmakers with versatility by supporting a wider range of cameras, improved wind-resistance and G-forces; the Ronin 2 offers improved performance when mounted to vehicles or during flight.



Its newly-designed detachable grip allows the Ronin 2 to stand up on its own, and is easily separated when the lower part of the hand grip is not needed. Ronin 2 is also compatible with cable cams, drones, cranes, Steadicams and more!



The Ronin 2 takes the Ronin's ease of setup and use to a whole new level. It's now easier than ever to mount cameras, balance and tune, power accessories and transport the Ronin 2. Integrated adjustment knobs and a redesigned camera mounting base simplify the process of making fine adjustments.



Settings and adjustments are now performed via the integrated, ultra-bright touch screen, streamlining the gimbal setup process. Tactile  buttons - including motor pause - are now easily within reach.



The Gimbal Assistant app has been refined, redesigned and expanded, allowing content to be created with minimal effort. New features such as CamAnchor, Timelapse and Panorama provide a more intuitive and easier to use full control system.



Enhanced intelligence renders specialist expertise and additional equipment redundant. Features such as total smoothness and studio-oriented smart features enable filmmakers to get the complex shots they want.



Power systems are now fully-integrated into the Ronin 2, allowing it to power its motors, attached cameras and accessories without dangling cables or the need for multiple power systems. The Ronin 2's dual battery system enables batteries to be hot-swapped, allowing the camera to be continually-powered while one battery is changed.



Every aspect of the Ronin 2 has been redesigned to maximise reliability- from the material it's contructed from to its splash-proof, enclosed motor design, cable management and built-in redundancy. The Ronin 2 is capable of performing in the most-demanding of shooting environments.

  • A carbon fibre build enables the Ronin 2 to perform well in extreme weather conditions. It is both light and durable, making the Ronin 2 reliable in the most-testing scenarios.
  • Ultra-durable batteries further enhance the Ronin 2's reliability in extreme weather conditions. The Ronin 2's self-heating batteries ensure stable power output in either extremely low or high temperatures.



The Ronin 2's integrated GPS provides the platform with essential information for gimbal accelleration and speed- parameters which are crucial for maintaining the camera's position and the horizonal level while moving at high speeds.

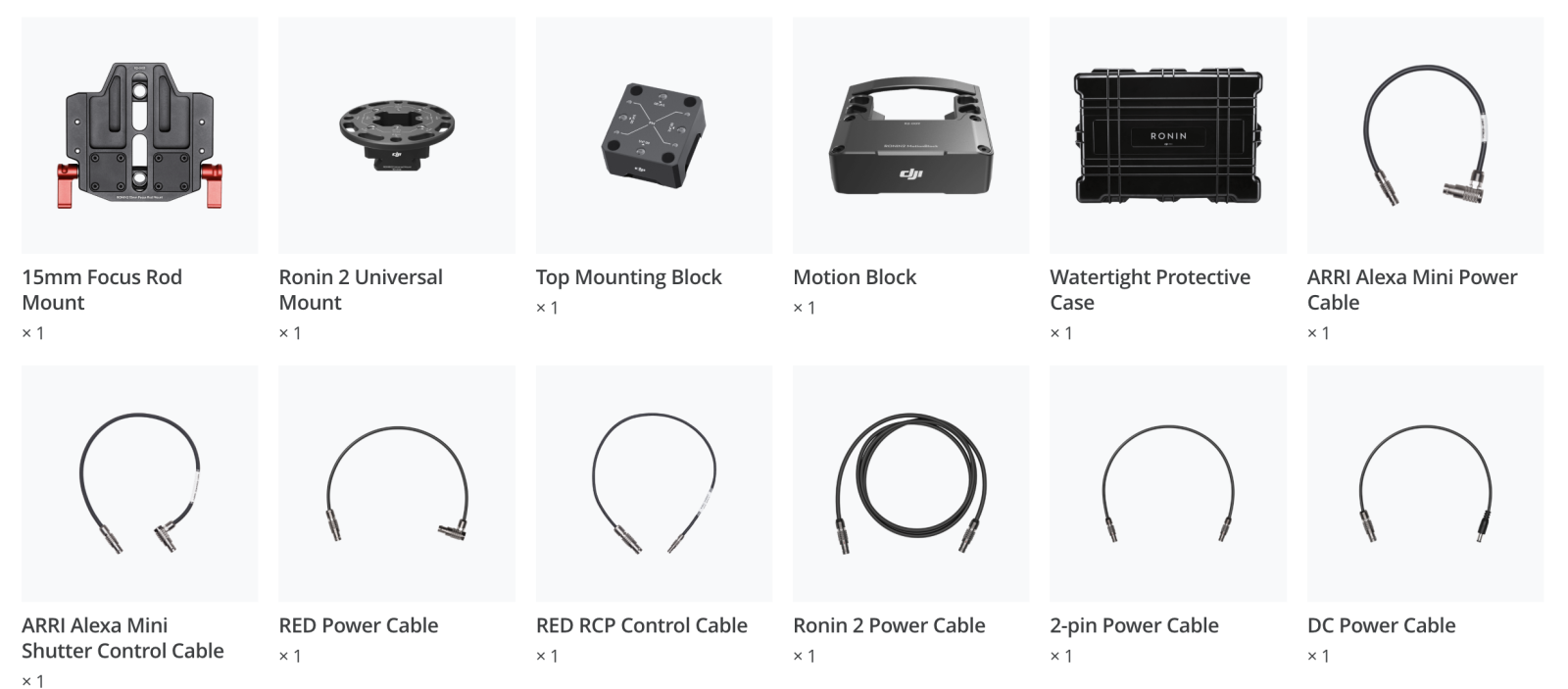

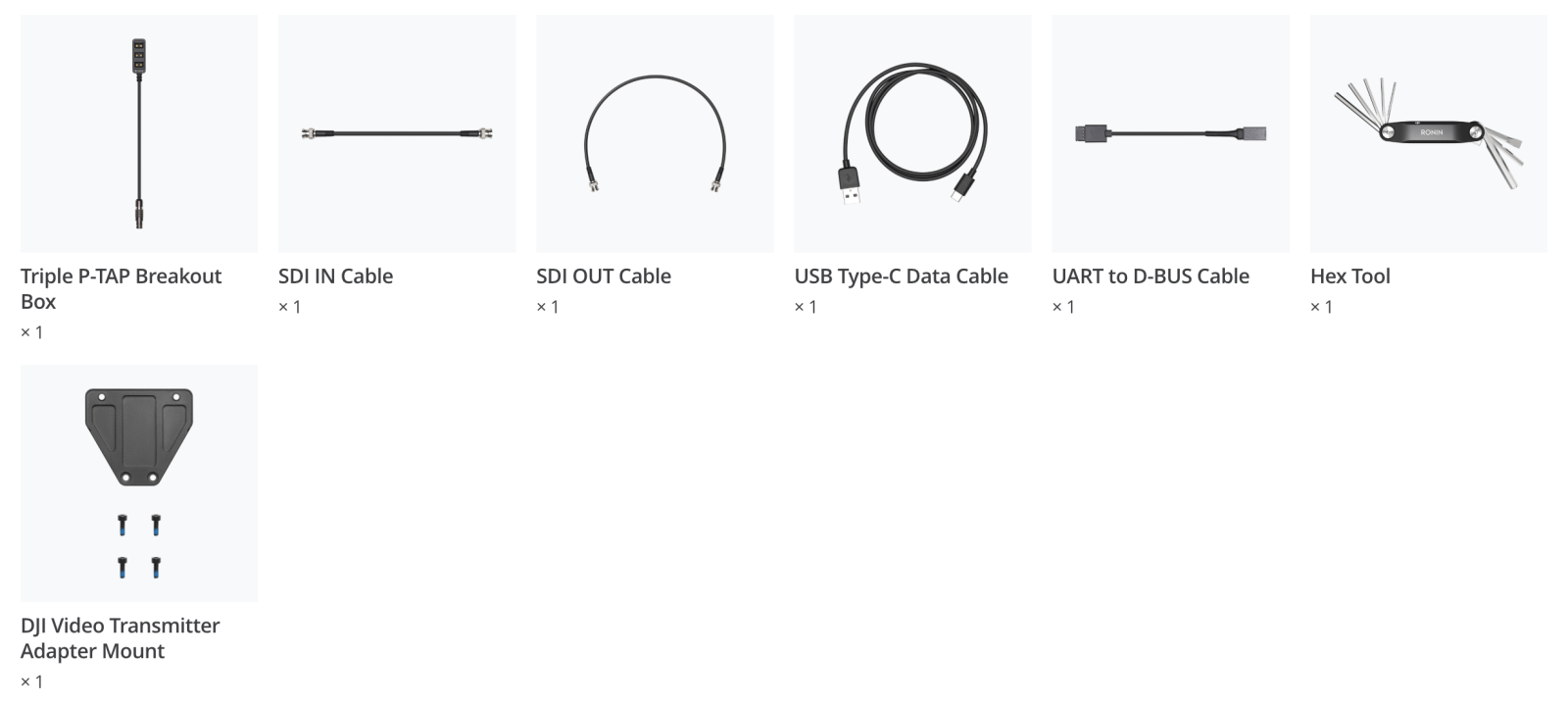

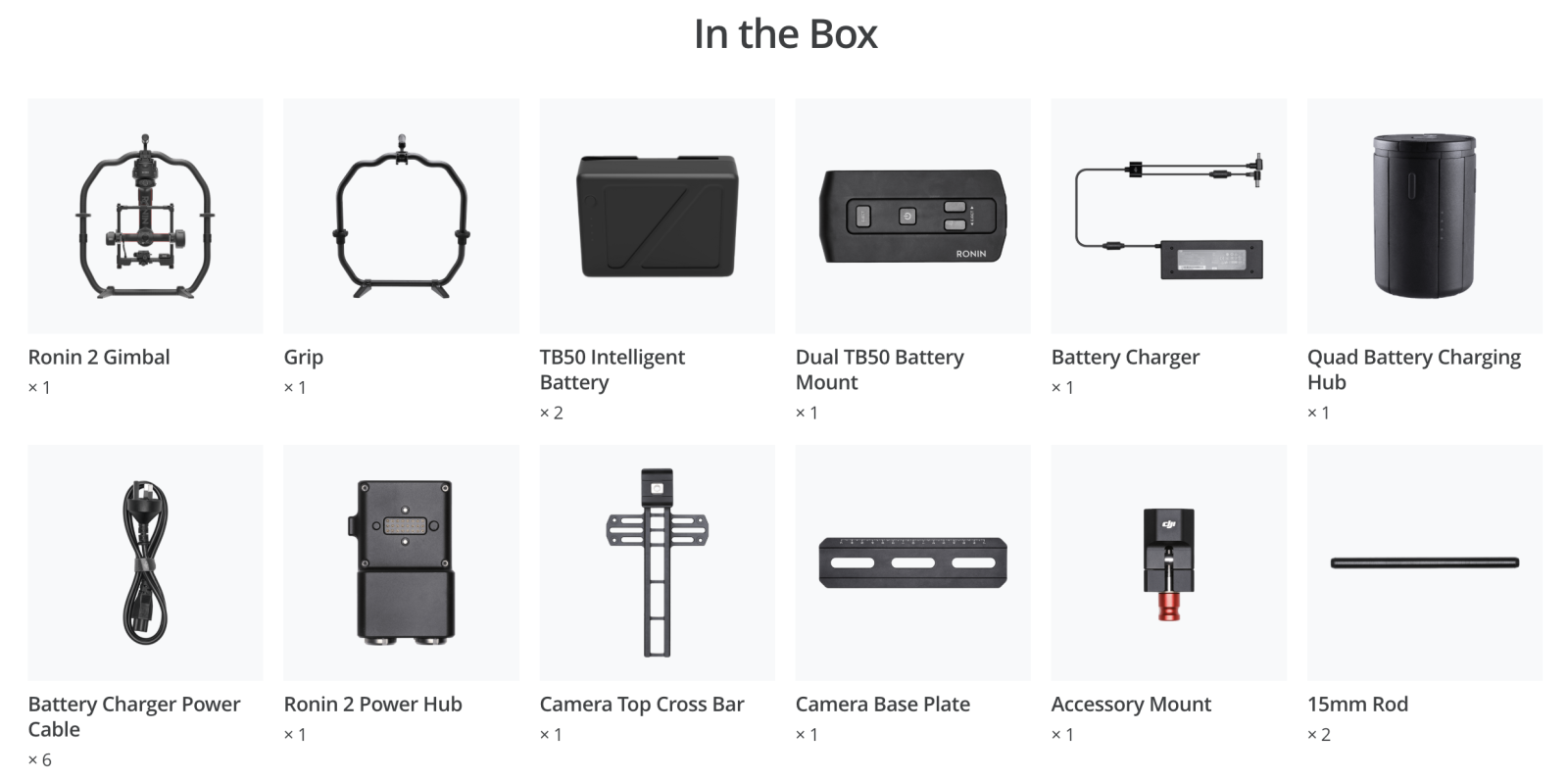

In the box:







GENERAL

Built-In Functions Operation Modes
-Underslung Mode
-Upright Mode
-Briefcase Mode
-Handheld, Car Mount, Aerial, Tripod, & Steadicam Mode
Built-in, independent IMU module
DJI Advanced 32-Bit ARM Processor
DJI Specialized Gimbal Drive Motors with Encoders
Dual Battery System
Bluetooth Module
D-Bus Receiver Supported
2.4 GHz/5.8 GHz Receiver
Temperature Sensors
Built-in Touch Panel
Built-in GPS
USB Type-C Connection
Power and Video Signal through Slip Ring






PERIPHERAL

Camera Tray Dimensions Maximum depth from the center of gravity on camera base plate: 245 mm
Maximum height measured from top of the camera base plate: 165 mm
Maximum width: 180 mm
Accessory Power Connections 14.4 V x 4 Camera Cage (Combined 8 A), 12.6 V x 2 Pan Motor (Combined 4 A), 12.6 V x1 P-Tap (8 A)
GCU Input Power Intelligent Battery: 4280 mAh-22.8 V
Connections 2.4 GHz/5.8 GHz Remote Control, Bluetooth 4.0, USB Type-C
PC Assistant Software Requirements Windows 7 or above; Mac OS X 10.11 or above
Mobile Assistant Software Requirements

iOS 9 or above; Android 4.4 or above

MECHANICAL & ELECTRICAL CHARACTERISTICS



Working Current Static current: 300 mA (@22.8 V)
Dynamic current: 500 mA (@22.8 V)
Locked motor current: Max 15 A (@22.8 V)
Run Time 8 hours
2.5 hours (when powering gimbal, camera and accessories at the same time)
Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Weight Including handle bar: 12 lb (5.5 kg)
Excluding handle bar: 9 lb (4.2 kg)
Gimbal Dimensions

Excluding handle bar: 350 mm (W) x 416 mm (D) x 530 mm (H)
Including handle bar: 630 mm (W) x 416 mm (D) x 720 mm (H)

WORKING PERFORMANCE

Load Weight (Reference Value) 30 lbs (13.6 kg)
Angular Vibration Range ± 0.02°
Maximum Controlled Rotation Speed Pan axis: 400°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Endpoint Range Pan axis control: 360° continuous rotation
Tilt axis control: ±135°
Roll axis control: ±220°
Controlled Rotation Range Pan axis control: 360° continuous rotation
Tilt axis control: +45° to -135°
Roll axis control: ±45°
SKU DJIRONIN2Combo
Barcode # 190021296893
Brand DJI
Shipping Weight 33.0000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
