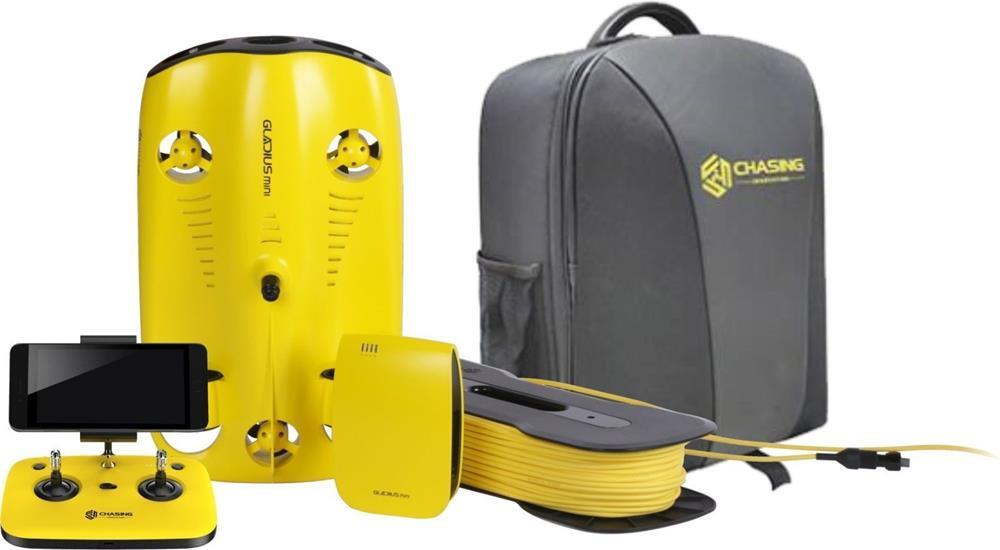

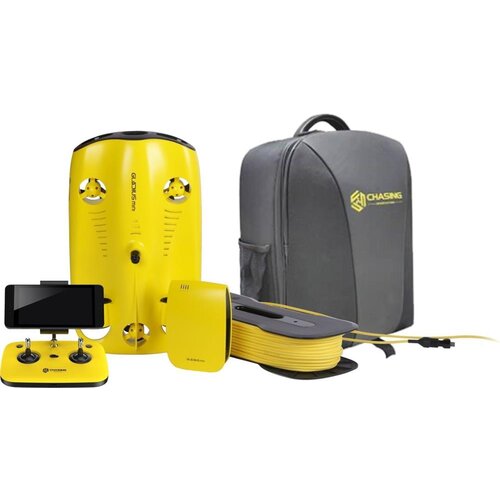

This kit contains the Gladius Mini Underwater Drone, 100 m tether and backpack

	One TouchDepth-Lock Mode		±45°AdjustableTilt-Lock Mode		Dive To330ft
	4K UHDCamera		One TouchShare On Social		LiveStream
	2hrRuntime		PortableBackpack



Applications

• Explore underwater environments and marine life as far as 328' below the surface
• Inspect undersides of boats, aquaculture facilities, or infrastructure such as dams and supports
• Grab underwater footage for content creation

Video and Photo

• Records 4K UHD video
• Real-time sharing on social media
• Captures 12MP still photos
• 1/2.3" CMOS sensor, f/3 lens
• Two 1200-lumen dimmable LED lights

Power

• Two horizontal thrusters produce top speed of 4 knots (2 meters/second)
• Three vertical thrusters allow 1 meter/second vertical descent/ascent
• Can move tilted up to 45° for up or down angled viewing
• One-touch depth lock mode
• AI intelligent control algorithm to ensure stable operation
• Powered by one 5000mAh, 5.5Wh battery with maximum two-hour runtime

Base Station and Transmitter

• Not for use in water
• 328' tether for connection to ROV
• Video game-style transmitter/remote controller connects wirelessly to station to control ROV operation
• Smartphone can also connect to station to control ROV and camera, and receive live video feed
• Bluetooth & Wi-Fi connectivity
• Station contains battery with 2600mAh capacity for up to 8-hour runtime
• Records to 64GB memory card

FAQs

1. What is the maximum range of GLADIUS MINI?

Maximum depth: 100m   Maximum speed: 4knots (2m/s)



2. How long does it take to charge the drone battery, and how long does a full charge last?

GLADIUS MINI is equipped with a 3A charger. It takes 1.5 hours to charge the drone battery. This full charge will last for about 2 hour.



3. How do I know when the GLADIUS MINI is running out of power?

The controller of the GLADIUS MINI is equipped with a Battery Power Indicator which is a red light warning signal starting at 25% battery remaining.



4. Does the drone automatically stabilize at the desired depth?

The 5-thruster design offers various depth control modes to maintain depths and stability. Selected modes offer more or less depth control while maintaining precision stability.



5. Do the thrusters work independently such that I can pitch the nose of the drone up and down?

The thrusters work independently, and you can pitch the nose of the drone up and down. Gladius MINI supports maximum plus or minus 45-degree pitch angle.



6. Does the Wi-FI Controller float in water?

The WI-FI controller does not have waterproof rating. Do not put the controller in the water.



7. Does the lens have a protection collar to prevent scratching if you bump coral or a prop?

The lens has a certain strength; however, we suggest customers  avoid collisions.



8. What's the record time on the onboard internal storage?

It depends on the capacity of the SD card and the resolution of video.



9. Is it possible to move GLADIUS MINI sideways at fixed depth and heading?

It supports movement at a fixed depth.



10. What are the main features?

The size of the mini is 385*226*138mm and the weight is less than 2.5KG. The total weight does not exceed 4KG.



11. How do I turn GLADIUS MINI On and Off?

Tighten the buoyancy tether, then turn on the switch on the back of the repeater. See the instruction here support@chasing-innovation.com



12. What are the Video & Photo formats for GLADIUS MINI?

MP4 and JPEG/PNG



13. How to connect your phone to your drone?

Turn on the base station, then connect to the ‘Gladius 5G WiFi’ by your phone. The password is 12345678.



14. Do I have to control GLADIUS MINI by APP? Are there requirements for the phone model?

Yes, the APP controls the GLADIUS MINI. iOS and Android are both available.

Packing List

Name	Qty	Illustration	Name	Qty	Illustration
Drone	1		Remote Controller Charging Cable (5V USB)	1
Base Station	1		3A Power Cord	1
Tether & Winder	1		3A Power Adapter	1
Remote Controller	1		Support Documents	4
Phone/Tablet Mount	1		Buoyancy Weights	2
Phone/Tablet Mounting Bracket	1		Absorbent Towel	1
Phone/Tablet Mounting Bracket Screw (M5*8)	3		Tether Connector Caps	4
Gladius MiniBody Screws(M3*6)	10		Backpack Standard	1
Tether Connector O-Rings	10
