FEATURES

• Fits over your motorcycle's existing brake/clutch reservoir cover; includes set of M4 x 35, M4 x 30, and M4 x 20 screws
• Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

OVERVIEW

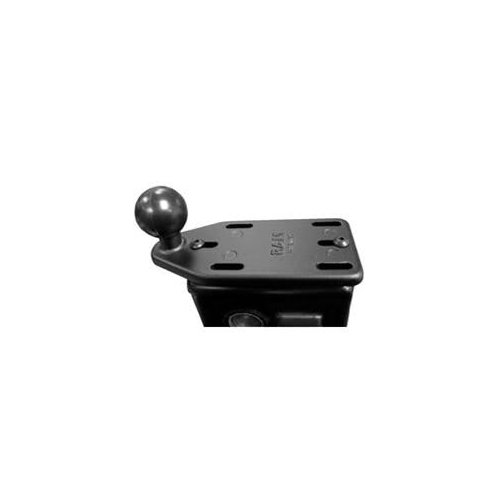

The RAM-B-346U base fits cleanly over your existing brake/clutch reservoir cover with the B size 1" rubber ball offset. Made of die cast aluminum with an overmolded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. The mount is NOT an additional reservoir cover, but instead a plate that mounts above the cover using the screw holes and longer screws of the cover. The kit includes three sets of screws of differing lengths. The center two slots are 2 7/16" center to center and are just under a .5" long. This mount is not compatible with the 2016 BMW R1200RT.

HARDWARE INCLUDED

(4) M4 x 20mm Machine Screws
(4) M4 x 30mm Machine Screws
(4) M4 x 35mm Machine Screws
(4) M4 Flat Washers
(4) .188" Nylon Spacers

HOLE PATTERN

See Drawing

PLATE SIZE

See Drawing

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
