SKU:

1638C

Tripod Load Capacity:

10kg

Package Weight (kg):

0.2

1.Well-shaped and feels comfortable
2. Cold shoe mount, ARRI 3/8"-16 locating holes, 1/4"-20 & 3/8''-16 threaded holes for microphone, LED light, monitor mount, magic arm, etc.
3. Compatible with general threaded holes

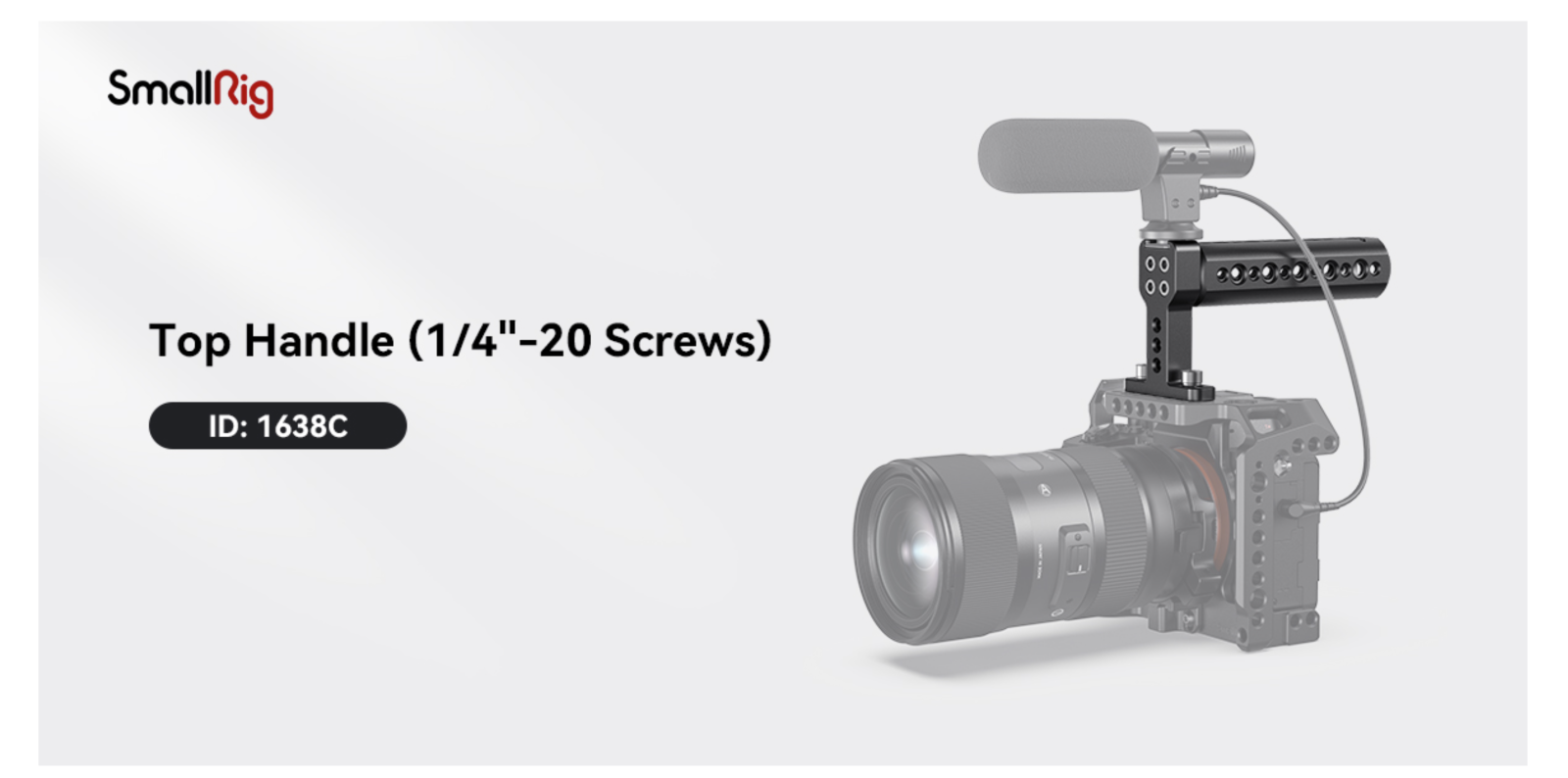

SmallRig Top Handle (1/4"-20 Screws) 1638C is designed to facilitate low-angle shooting and reduce burdens on your arm. The well-shaped handle feels comfortable and comes with varied accessory mounts. They include a cold shoe mount on the front for microphone, LED light, Monitor Mount 2905; an ARRI 3/8"-16 locating hole at the rear end for Monitor Mount 2903; 1/4"-20 & 3/8''-16 threaded holes on the top and both sides for attaching Magic Arm 2070 for monitor mount. This handle also works with Remote Control 2924 in recording for some particular cameras. It can be installed via general threaded holes.

Designer: Tracy Joy

Note: Max payload: 10kg

Compatibility:

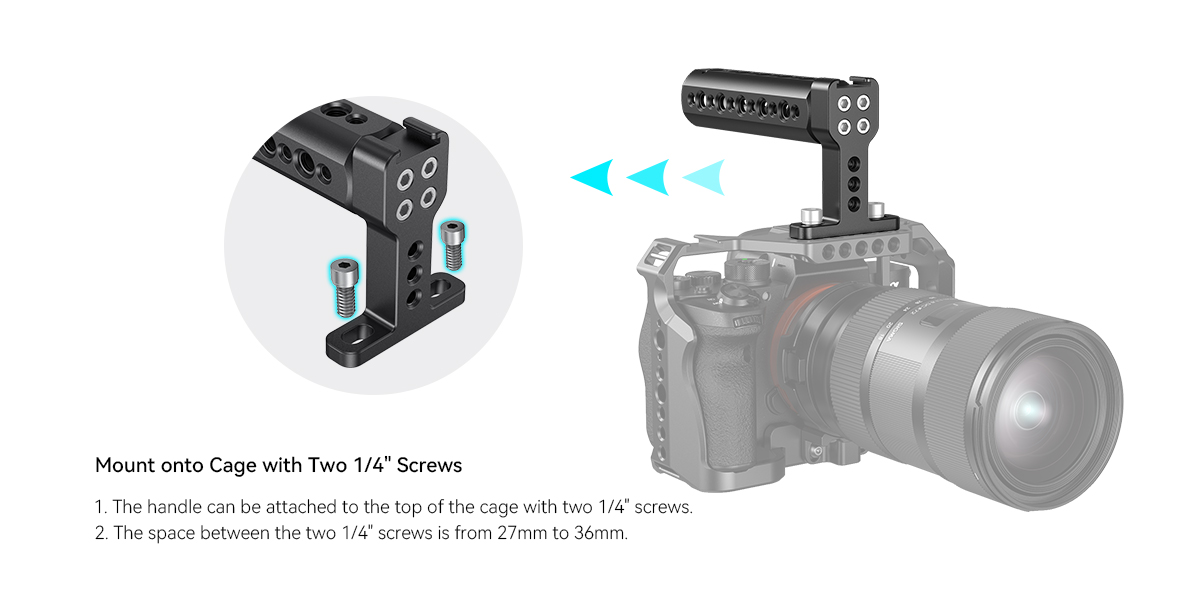

Any two 1/4"-20 threaded holes with centers 27 ~ 36 mm spaced apart

In the Box:
1 x Top Handle
1 x Allen Wrench
2 x 1/4"-20 Screw

Specifications:
Product Dimensions: 127.2 x 70 x 48mm
Package Dimensions: 145 x 104 x 57mm
Product Weight: 158g±5g
Package Weight: 228g±5g
Material(s): Aluminum Alloy

SKU 1638C
Barcode # 6941590010878
Brand SmallRig
Shipping Weight 0.3500kg
Shipping Width 0.200m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.001440000m3
